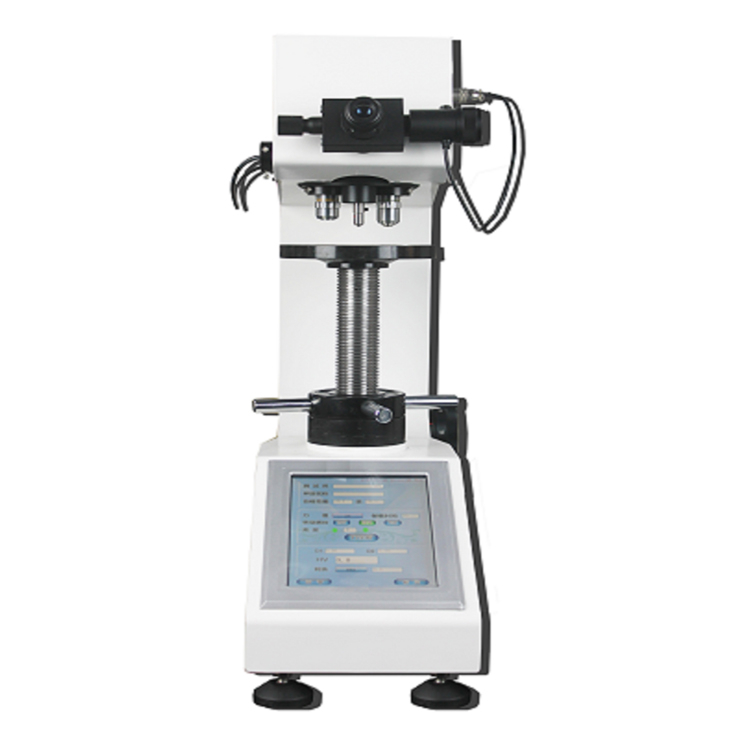

HV-50MDT Touch Screen Digital Display Automatic Turret Vickers Hardness Tester
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
1.Application:
HV-10MDT Touch Screen Digital Display Automatic Turret Vickers Hardness Tester adopts
the 8-inch touch screen digital display, menu structure interface, can choose hardness scale
HV or HK on the interface. The hardness value is automatic calculate and automatic display.
Double objective measurement.
With automatic turret structure, the indenter and objective can switch automatically.
Automatic positioning accuracy of the test point.
2.Technical Parameter:
Model | HV-50MDT |
Test Force | 1.0Kgf (9.8N); 5.0Kgf (49.0N); 10Kgf (98.0N); 20Kgf (196.0N); 30Kgf (294.0N); 50Kgf(490.0N) |
Hardness Measurement Range | 8~2900 HV |
Measurement Resolution | 0.01 um |
Test Force Loading Method | Automatic (Loading, Dwell, Unloading) |
Max. Height Of Sample | 160 mm |
Distance From Indenter To The Wall | 135 mm |
Dwell Time | 1~99 s |
Microscope Magnification | 100X, 200X |
Conversion Scale | Rockwell, Brinell |
