Description:
1.Application:

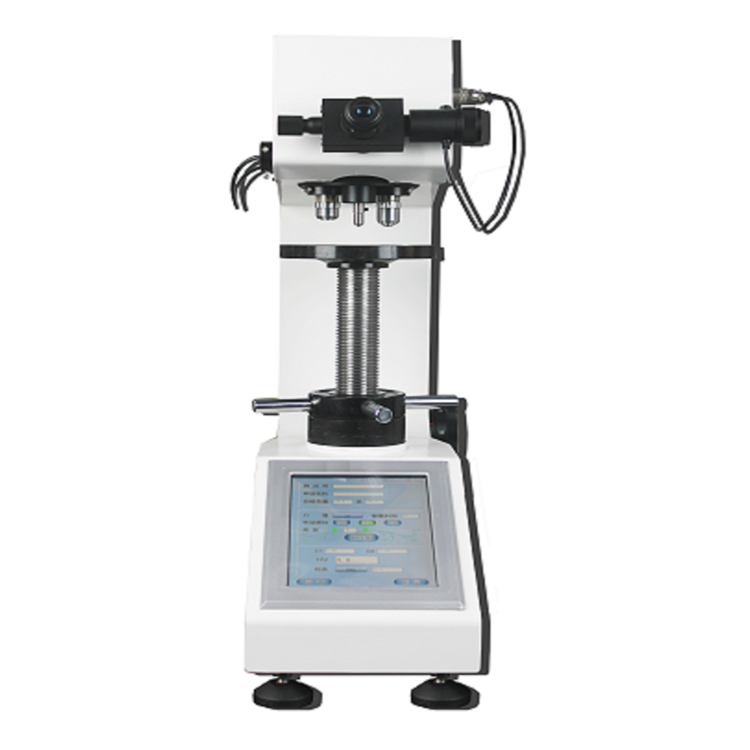

HV-10DT Touch Screen Digital Display Manual Turret Vickers Hardness Tester adopts the 8-inch
touch screen digital display, menu structure interface, can choose hardness scale HV or HK on
the interface. The hardness value is automatic calculate and automatic display.
Conversion between different hardness value, stepless adjustment of light source.
Double objective measurement.
2.Technical Parameter:
Model | HV-10DT |
Test Force | 0.3Kgf (2.94N); 0.5Kgf (4.9N); 1.0Kgf (9.8N); 3.0Kgf (29.4N); 5.0Kgf (49.0N); 10Kgf (98.0N) |
Hardness Measurement Range | 8~2900 HV |
Measurement Resolution | 0.01 um |
Test Force Loading Method | Automatic (Loading, Dwell, Unloading) |
Max. Height Of Sample | 160 mm |
Distance From Indenter To The Wall | 135 mm |
Dwell Time | 1~99 s |
Microscope Magnification | 100X, 200X |
Conversion Scale | Rockwell, Brinell |
