Description:
1.Application:

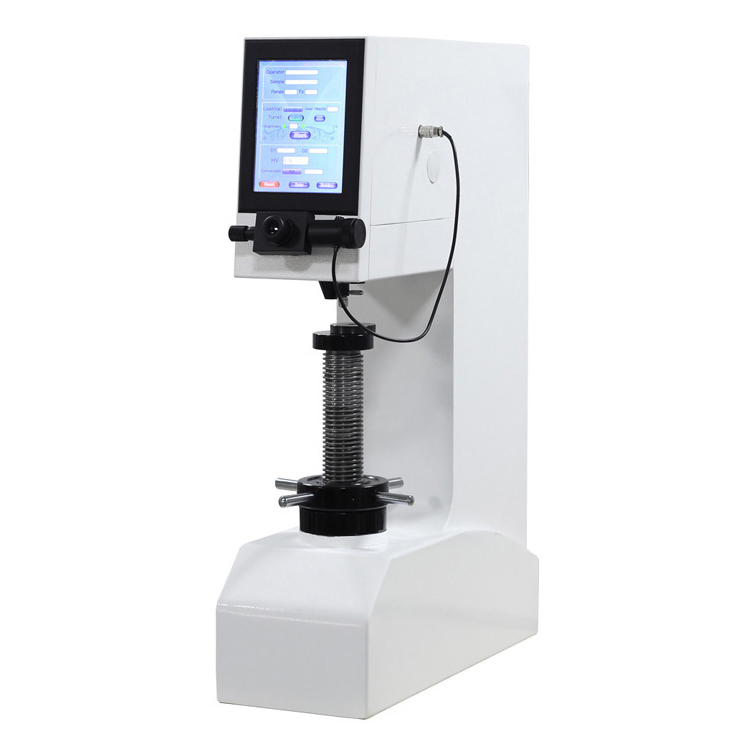

HB-3000MDX Automatic Turret Touch Screen Digital Display Brinell Hardness Tester uses the electronic
electric loading, high precision sensor, has unique closed loop control system.
Automatic correction for each test force.
With automatic turret structure, the indenter and objective can switch automatically.
Automatic positioning accuracy of the test point, automatic loading and automatic unloading.
With digital encoder eyepiece structure, measure the D1 and D2 values, hardness value and D1, D2
value will be showed on the screen directly.
The hardness values of rockwell and vickers can be converted.
All data is saved in the U disk in EXCEL format.
2.Technical Parameter:
Model | HB-3000MDX |
Brinell Hardness Scale | HBW2.5/62.5; HBW2.5/187.5; HBW5/62.5; HBW5/125; HBW5/250; HBW5/750; HBW10/100; HBW10/250;
HBW10/500; HBW10/1000; HBW10/1500; HBW10/3000
|
Test Force | 62.5 Kgf (612.9N); 100 Kgf (980.7N); 125 Kgf (1226N); 187.5 Kgf (1839N); 250 Kgf (2452N); 500 Kgf (4903N);
750 Kgf (7355N); 1000 Kgf (9807N); 1500 Kgf (14710N);
3000 Kgf (29420N)
|
Test Force Accuracy | 62.5~250 Kgf ≤ 1%; 500~3000 Kgf ≤ 0.5% |
Measuring Device Resolution | 0.1 um |
Hardness Value Resolution | 0.1 HBW |
Dwell Time | 0~99 s |
Max. Height Of Sample | 200 mm |
Distance From Indenter To The Wall | 155 mm |
