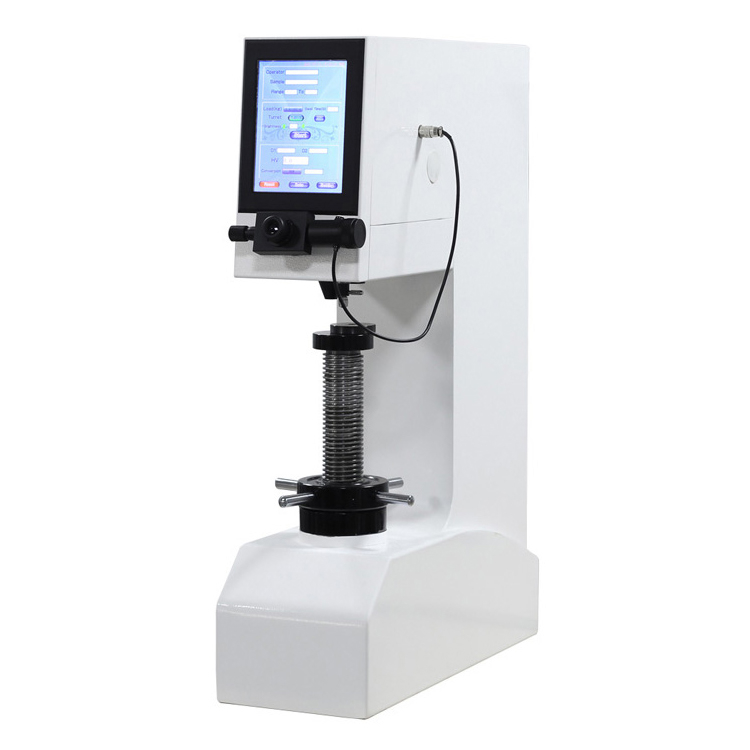

HB-3000DX Manual Turret Touch Screen Digital Display Brinell Hardness Tester

1.Application:

HB-3000DX Manual Turret Touch Screen Digital Display Brinell Hardness Tester uses the electronic

electric loading, high precision sensor, has unique closed loop control system.

Automatic correction for each test force.

With digital encoder eyepiece structure, measure the D1 and D2 values, hardness value and D1, D2

value will be showed on the screen directly.

The hardness values of rockwell and vickers can be converted.

All data is saved in the U disk in EXCEL format.

2.Technical Parameter:

Model	HB-3000DX
Brinell Hardness Scale	HBW2.5/62.5; HBW2.5/187.5; HBW5/62.5; HBW5/125; HBW5/250; HBW5/750; HBW10/100; HBW10/250; HBW10/500; HBW10/1000; HBW10/1500; HBW10/3000
Test Force	62.5Kgf(612.9N);100Kgf(980.7N);125Kgf(1226N); 187.5Kgf(1839N); 250Kgf(2452N);500Kgf(4903N); 750Kgf(7355N);1000Kgf(9807N); 1500Kgf(14710N); 3000Kgf(29420N)
Test Force Accuracy	62.5~250 Kgf ≤ 1%; 500~3000 Kgf ≤ 0.5%
Measuring Device Resolution	0.1 um
Hardness Value Resolution	0.1 HBW
Dwell Time	0~99 s
Max. Height Of Sample	200 mm
Distance From Indenter To The Wall	155 mm
