Description:
1.Application:

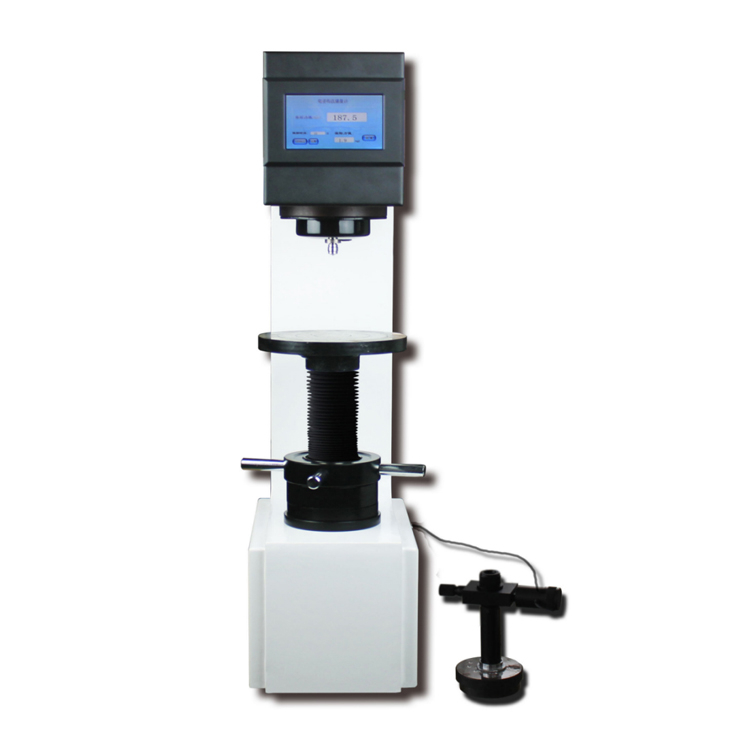

HB-3000DXe Touch Screen Digital Display Brinell Hardness Tester uses the electronic loading,
high precision sensor, has unique closed loop control system, computer software programming
photoelectric sensors system.
With 10 levels test force, and automatic correction for each test force.
External connect digital measuring microscope.
2.Technical Parameter:
Model | HB-3000DXe |
Brinell Hardness Scale | HBW2.5/62.5; HBW2.5/187.5; HBW5/125; HBW5/750; HBW10/100; HBW10/1500; HBW10/3000; HBW10/250; HBW10/500; HBW10/1000 |
Test Force | 62.5 Kgf (612.9N); 100 Kgf (980.7N); 125 Kgf (1226N); 187.5 Kgf (1839N); 250 Kgf (2452N); 500 Kgf (4903N); 750 Kgf (7355N); 1000 Kgf (9807N); 1500 Kgf (14710N); 3000 Kgf (29420N) |
Measuring Device Resolution | 0.1 um |
Hardness Measurement Range | 8-650 HBW |
Hardness Value Resolution | 0.1 HBW |
Dwell Time | 0~99 s |
Max. Height Of Sample | 230 mm |
Distance From Indenter To The Wall | 155 mm |
Total Magnification | 20X |
