Description:
1.Application:

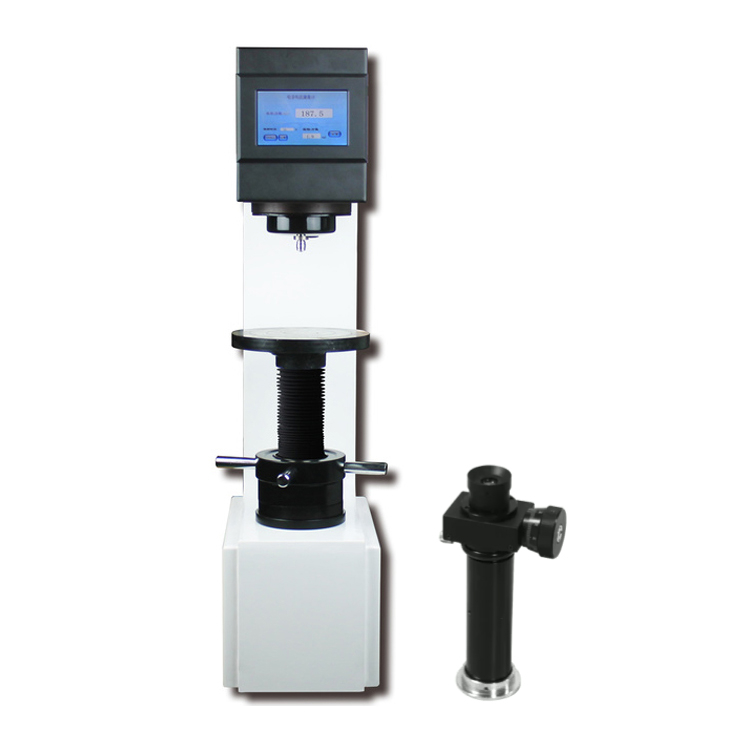

HB-3000S Touch Screen Digital Display Electronic Brinell Hardness Tester uses the electronic
electric load, high precision sensor, has the unique closed loop control system.
Automatic loading and automatic unloading. Built-in hardness value calculation system.
2.Technical Parameter:
Model | HB-3000S |
Test Force | 62.5 Kgf (612.9N); 100 Kgf (980.7N); 125 Kgf (1226N); 187.5 Kgf (1839N); 250 Kgf (2452N); 500 Kgf (4903N); 750 Kgf (7355N); 1000 Kgf (9807N); 1500 Kgf (14710N); 3000 Kgf (29420N) |
Test Force Accuracy | 62.5~250 Kgf ≤ 1%; 500~3000 Kgf ≤ 0.5% |
Hardness Measurement Range | 3.18-653 HBW |
Hardness Value Resolution | 0.1 HBW |
Dwell Time | 0~99 s |
Max. Height Of Sample | 230 mm |
Distance From Indenter To The Wall | 155 mm |
Measuring Microscope Magnification | 20X |
