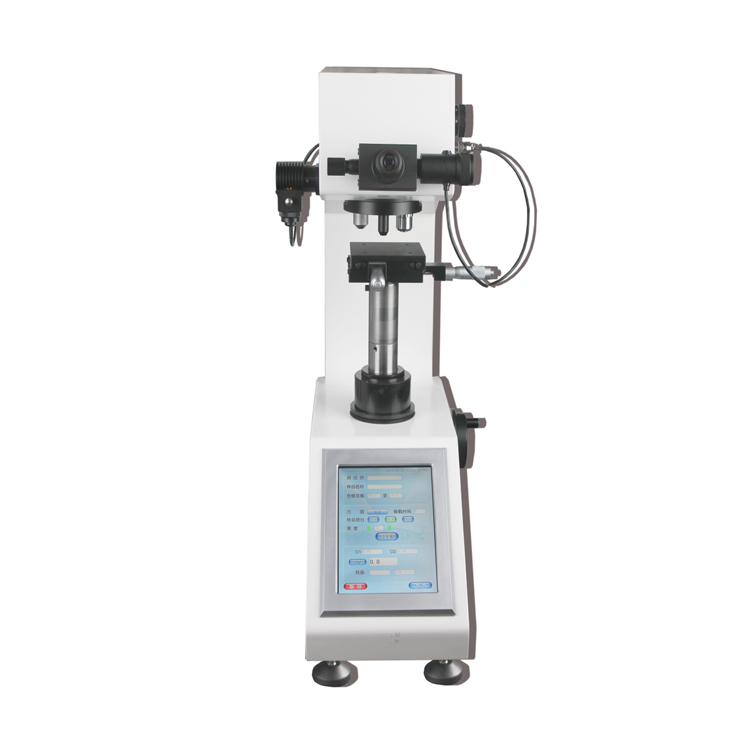

HV-2MDT Touch Screen Digital Display Automatic Turret Micro Vickers Hardness Tester
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
1.Application:
HV-2MDT Touch Screen Digital Display Automatic Turret Micro Vickers Hardness Tester is 8-inch touch
screen digital display type, dual language setting, convenience for users to choose, menu structure interface,
can choose hardness scale HV or HK on the interface.
With automatic turret structure, the indenter and objective can switch automatically.
Automatic positioning accuracy of the test point.
Equipped with an RS-232 interface, can be connected to the computer.
2.Technical Parameter:
Model | HV-2MDT |
Test Force | 10gf(0.098N); 25gf(0.245N); 50gf(0.49N); 100gf(0.98N); 200gf(1.96N); 300gf(2.94N); 500gf(4.9N); 1Kgf(9.8N); 2Kgf(19.6N) |
Measurement Resolution | 0.01 um |
Hardness Measurement Range | 8~2900 HV |
Test Force Loading Method | Automatic (Loading, Dwell, Unloading) |
Conversion Scale | Rockwell, Brinell |
Dwell Time | 0~99 s |
Max. Height Of Sample | 100 mm |
Distance From Indenter To The Wall | 130 mm |
Microscope Magnification | 100X, 400X |
X-Y Stage | Size: 100*100mm; Max. Movement: 25*25mm |
Standards Compliant | GB/T4340.2, ASTM E92 |
