SDEKON XJ-50D Computer Control Plastic Charpy & Izod Impact Testing Machine
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
1.Applications:

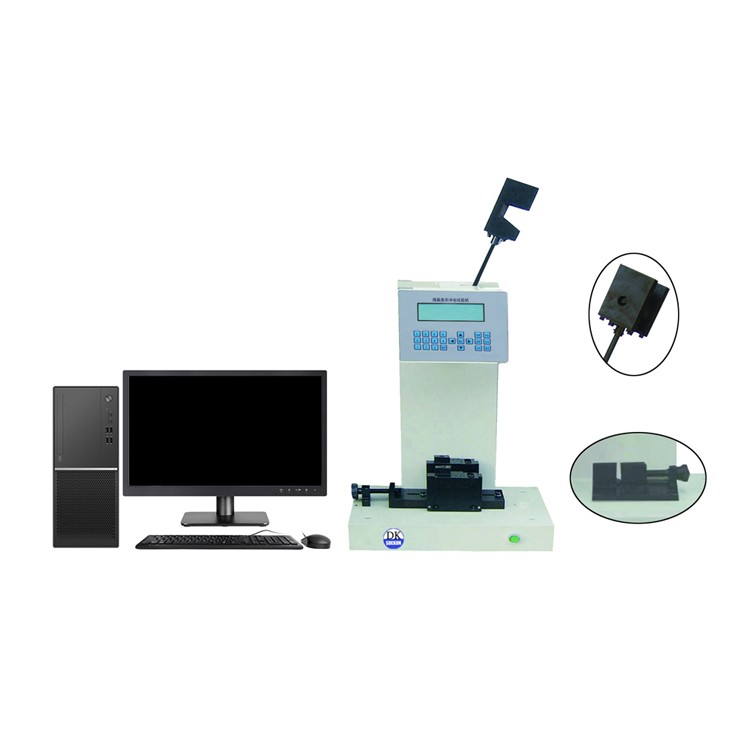

SDEKON XJ-50D Computer Control Plastic Charpy & Izod Impact Testing Machine is computer control
and digital display type. Charpy impact and Izod impact, can be selected and combined the each of
energy pendulum arbitrarily. Its Man-Machine dialogue very convenient, high precision, automatic display
the impact energy, automatic calculation the impact strength, can automatic calculate the average impact
strength of the entire set of samples, can delete data arbitrarily. This machine is electric release hammer.
2.Main Specifications:
Model | XJ-50D |
Pendulum Energy | Charpy: 1J, 2J, 4J, 5J, 7.5J, 15J, 25J, 50J |
Izod: 1J, 2.75J, 5.5J, 11J, 22J | |
Impact Speed | Charpy: 2.9m/s; Charpy: 3.8m/s; Izod: 3.5m/s |
Pendulum Angle | 160° |
Distance Between Pendulum Center And Sample Center | Charpy: 221mm; Charpy: 380mm; Izod: 322mm |
Fillet Radius Of Support Blades | R=1mm |
Impact Blades Angle | 30° |
Fillet Radius Of Impact Blades | R=2mm |
