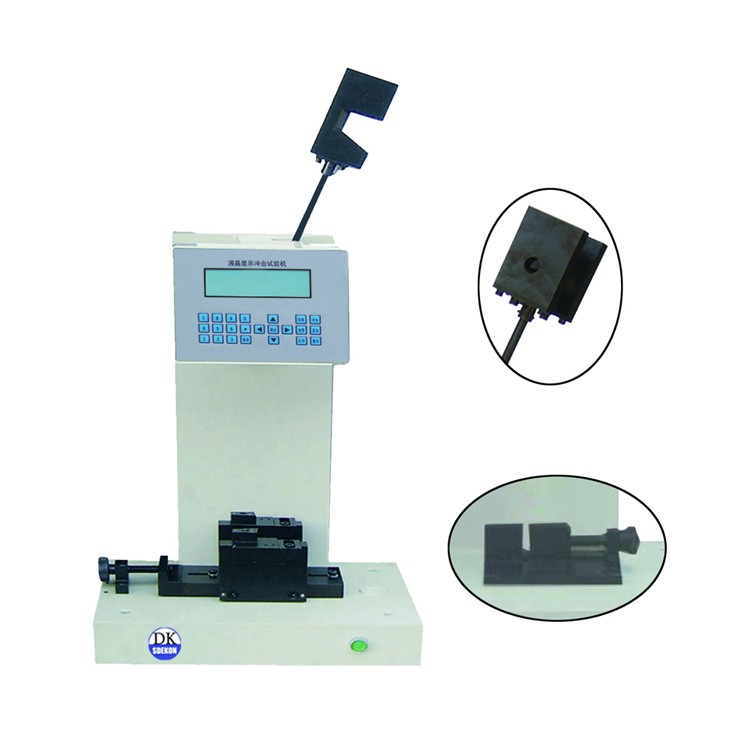

SDEKON XJ-50Z Digital Display Plastic Charpy & Izod Impact Testing Machine
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
1.Applications:
SDEKON XJ-50Z Digital Display Plastic Charpy & Izod Impact Testing Machine is single-chip microcomputer
control, digital display type. Charpy impact and Izod impact, can be selected and combined the each of energy
pendulum arbitrarily. Its Man-Machine dialogue very convenient, high precision, automatic display the impact
energy, automatic calculation the impact strength, can automatic calculate the average impact strength of the
entire set of samples, can delete data arbitrarily.
This machine is electric release hammer, also installed the micro-printer, can print the test results.
2.Main Specifications:
Model | XJ-50Z |
Pendulum Energy | Charpy: 1J, 2J, 4J, 5J, 7.5J, 15J, 25J, 50J |
Izod: 1J, 2.75J, 5.5J, 11J, 22J | |
Impact Speed | Charpy: 2.9m/s; Charpy: 3.8m/s; Izod: 3.5m/s |
Pendulum Angle | 160° |
Distance Between Pendulum Center And Sample Center | Charpy: 221mm; Charpy: 380mm; Izod: 322mm |
Fillet Radius Of Support Blades | R=1mm |
Impact Blades Angle | 30° |
Fillet Radius Of Impact Blades | R=2mm |
