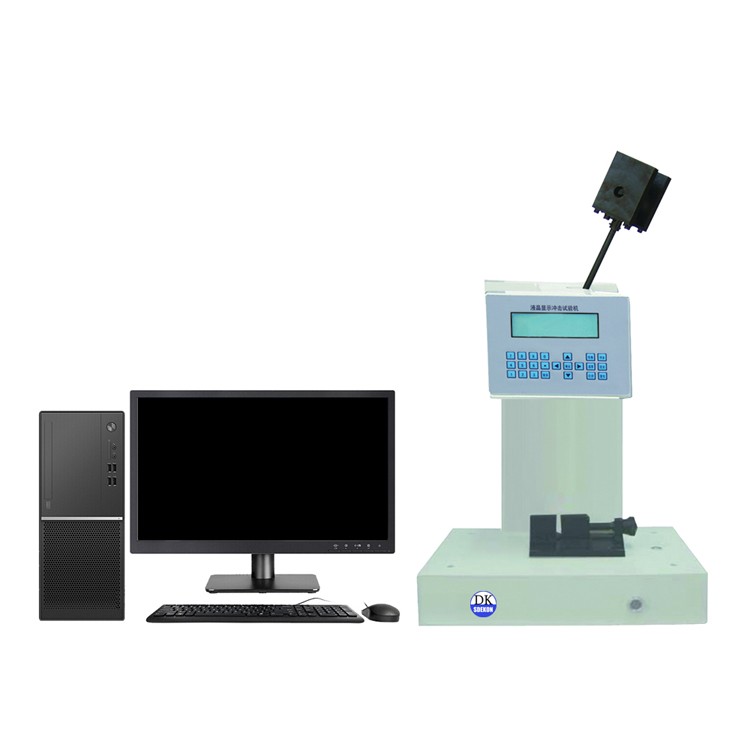

SDEKON XJUD-5.5 Computer Control Plastic Izod Impact Testing Machine

1.Applications:SDEKON XJUD-5.5 Computer Control Plastic Izod Impact Testing Machine is computer control and di

One Year Warranty

Prompt Delivery

1.Applications:

SDEKON XJUD-5.5 Computer Control Plastic Izod Impact Testing Machine is computer control and digital display

type. Its Man-Machine dialogue very convenient, high precision, automatic display the impact energy, automatic

calculation the impact strength, can automatic calculate the average impact strength of the entire set of samples,

can delete data arbitrarily. This machine is electric release hammer.

2.Main Specifications:

Model	XJUD-5.5
Pendulum Energy	1 J	2.75 J	5.5 J
Impact Speed	3.5m/s
Pendulum Impact Accuracy	0.001 J
Pendulum Angle	160°
Distance Between Pendulum Center And Sample Center	322mm
Distance Of The Impact Blade To The Upper Plane Of Jaw	22mm
Fillet Radius Of The Blades	R=0.8mm
